Porcelain Pool Tiles

The use of porcelain tiles for pool linings has grown significantly on high-end residential projects. Where plastic liners and traditional mosaic tiles once dominated, large-format porcelain now offers a contemporary, low-maintenance alternative that can closely recreate the appearance of natural stone while meeting the technical demands of full immersion. Our pool tile range, combined with our in-house fabrication and technical support, means we are directly involved in how these systems are specified, detailed and installed, and we see first-hand what separates a durable installation from one that fails prematurely.

Installation in a pool environment is fundamentally different from tiling a bathroom, a shower room or an external terrace. The tile system operates under full and continuous immersion, is subject to significant thermal cycling as water temperature changes, and is exposed to pool water chemistry that can be corrosive to inadequately specified adhesives and grouts. This guide sets out the core technical requirements for porcelain pool tile installations, covering substrate preparation, waterproofing, adhesive specification, grouting, movement joints and ongoing maintenance. It is written for pool contractors, tile fixers and project teams who are specifying or reviewing a pool tile system from first principles.

We supply our porcelain pool lining tiles in a range of formats and finishes, and available in extra-large formats for contemporary pool designs with minimal joint lines. Our porcelain pool tiles are available in 10 mm thickness for pool linings, and our 20 mm porcelain range is used for pool copings and surrounds. For steps, copings and bespoke cuts that need to be produced to a specific profile or dimension, we fabricate in our on-site workshop, including cutting porcelain to match the geometry of the pool shell.

Substrate Assessment and Preparation

The single most important principle when tiling a pool in porcelain is that the structure must be inherently watertight before tiling begins. Swimming pool construction in the UK is governed by BS 8007: Code of Practice for Design of Concrete Structures for Retaining Aqueous Liquids, which defines how pool shells must be designed and tested before any finish is applied. The tiled finish, including the adhesive and grout, is not a waterproofing system in its own right, even highly specified cementitious adhesives that are classed as water-resistant retain their strength under immersion but will not prevent water from passing through the tile bed. The pool shell must have been tested and passed before the tile contractor begins work.

Once the pool contractor has confirmed structural water tightness, the surface must be prepared for the tile system. Laitance from concrete renders or screeds should be removed, and any mould release agents used during shell construction must be cleaned off thoroughly, power washing is typically sufficient for this purpose.

The surface must then be assessed for porosity:

Waterproofing: Tanking Systems

For pool installations, a dedicated waterproofing layer, commonly referred to as a tanking system, is applied to the prepared pool shell before tiling commences. This is distinct from the structural water tightness of the shell itself: the tanking layer provides a flexible, crack-bridging barrier that accommodates minor structural movement and protects the adhesive and tile bed from any water that penetrates through joints or grout lines in service.

Products used for pool tanking must be specified for total immersion use. Industry-standard two-part cementitious tanking systems conforming to BS EN 14891, such as BAL Tank-it, are rated for fully immersed applications and can be tiled after a relatively short curing period, typically 90 minutes at 20°C. ARDEX S 7 Plus is a flexible waterproof coating designed specifically for tanking swimming pools, capable of resisting water pressures of up to 5 Bar, with tiling possible four hours after the application of the second coat. These systems must be applied in a minimum of two coats, with fabric reinforcement tape pressed into the first coat at all internal corners, junctions between walls and floors, and around any service penetrations such as inlet fittings, drain points and underwater light housings.

The choice of tanking system must be compatible with the adhesive that follows it. A proprietary adhesive with proven performance should be confirmed as compatible with the waterproofing product before either is ordered. Mixing products from different manufacturers without confirmed compatibility is a common source of system failures, particularly in the aggressive chemical environment of a chlorinated pool where any weakness in the bond between tanking and adhesive will be exploited by water over time. We advise specifiers to select tanking and adhesive from the same system, and to confirm with the manufacturer that the system is rated for continuous pool immersion.

Adhesive Specification

Tile adhesive for pool linings must be specified to a higher standard than for standard wet areas. Tiles should be fixed using a highly modified cementitious adhesive conforming to EN 12004 and classified as capable of withstanding continual immersion, typically C2 S1 or C2 S2 classification, where C2 denotes improved cementitious adhesive and S1 or S2 denote flexibility class. The flexibility classification is significant: pool shells are subject to ongoing thermal movement as water temperature cycles, and a rigid adhesive bed that cannot accommodate this movement will develop cracks or debonding over time.

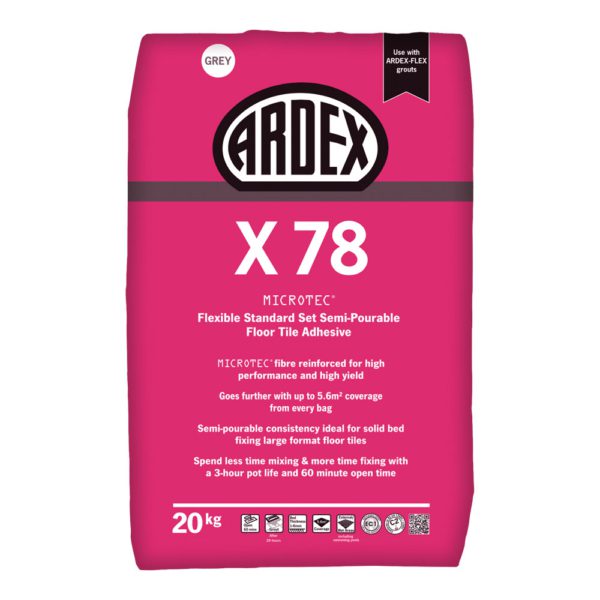

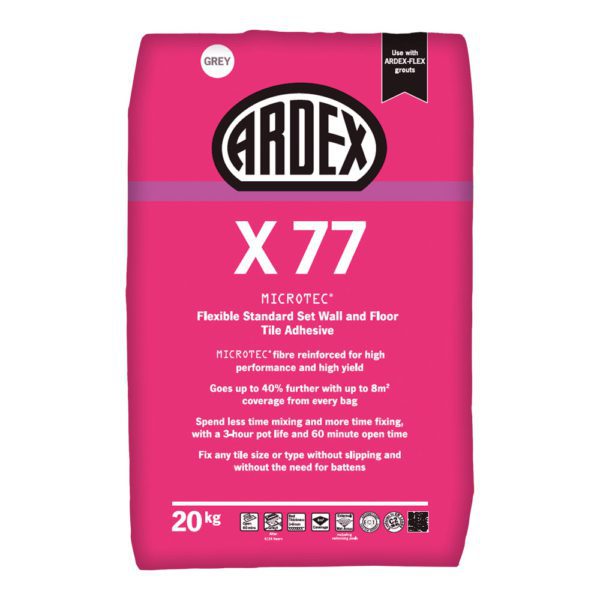

We supply Ardex x78 and x77 and associated pool-rated adhesives through our fixing and maintenance product range, and these are the products we recommend for fixing our porcelain pool tiles to ensure compatibility with the tile body and the waterproofing system.

Key installation requirements for porcelain pool tile adhesion include:

Adhesive must be applied to the tanking layer as soon as the tanking product is sufficiently cured but before it has fully hardened, in accordance with the manufacturer’s guidance, to ensure mechanical key between the two layers.

Open time must be managed carefully in warm conditions: adhesive that has skinned on the face before the tile is placed will not achieve adequate bond strength.

Porcelain tiles have very low porosity, which means the adhesive must take its initial set primarily through chemical reaction rather than absorption into the tile. This is why a highly modified C2-class adhesive is necessary rather than a standard C1 product.

For pool step edges, copings and any pieces that have been cut in our workshop to a bespoke profile, the same adhesive specification applies. Cut edges on porcelain are lower in porosity than the factory surface, and attention to full bedding is particularly important on these pieces to prevent water tracking behind the tile at vulnerable cut arris faces.

Grout Selection and Joint Specification

Grout selection for pool linings is governed by the water chemistry and the type of use the pool will receive. The ideal pool water pH range is 7.2 to 7.8, water that is acidic or poorly balanced will attack cementitious grouts over time, dissolving calcium salts and eroding joint faces. In soft water areas or pools with complex water features, reaction-resin (epoxy) grouts, rated to BS EN 13888 R classification, are recommended for their impervious nature and chemical resistance, they perform consistently across a wider range of water chemistry conditions than standard cementitious grouts.

Where water chemistry is consistently well-controlled and conditions are less aggressive, an improved cementitious grout classified to BS EN 13888 CG2WA, with reduced water absorption and high abrasion resistance, is suitable for many residential pool linings. This is the equivalent of specifying the Ardex Flex FL grout Wide Joint Grout that we recommend for our stone and porcelain floor tile installations generally. However, for pool linings, we always advise the project team to confirm the water quality management arrangements before finalising grout specification, because the difference in performance between a CG2WA grout and an epoxy grout over a ten-year period can be significant if water chemistry is not tightly managed.

Minimum joint widths for pool tiles follow BS 5385 guidance: 2 mm for wall applications such as mosaic, 3 mm for floor applications, and 5 mm or greater for large-format tiles. Butt-jointing is not acceptable in pool installations. Joints must be consistent, fully filled and flush with the tile face to avoid ledges that can harbour bacteria or catch bathers’ feet.

Movement Joints

Movement joints are mandatory in pool tile installations and must be incorporated at specific locations regardless of tile format or adhesive specification. Per BS 5385 Part 4 and confirmed by industry guidance from BAL Adhesives and others, movement joints in pool linings must be provided:

Movement joints must be filled with a sealant that is compatible with full immersion and the pool water chemistry. Epoxy-based sealants or high-polymer-content polysulphide sealants are recommended by industry guidance for pool movement joints, as these retain flexibility and adhesion under continuous water contact better than standard silicone. The visual width and depth of movement joints should be coordinated with the tile format and layout so that they fall at natural module lines where possible, and are consistent with the grouted joint width to avoid joints that stand out disproportionately in the finished lining.

Commissioning, Curing and Initial Fill

Once the tiled pool lining is complete and grout has been allowed to cure in accordance with the grout manufacturer’s guidance, the pool should not be filled immediately to full depth. An initial slow fill, allowing water to rise incrementally over several days, gives the adhesive and grout beds time to acclimatise to immersion before being subjected to the full hydrostatic load of a filled pool. This is particularly important in new pools where the concrete shell may continue to lose moisture and undergo minor movement during its first season.

Water chemistry should be balanced before the pool is commissioned for use. Dosing a new pool with aggressive concentrations of chlorine or pH-adjusting chemicals before the grout has fully hardened can cause surface etching or discolouration that is difficult to reverse. Pool operators should follow their water treatment specialist’s commissioning protocol, and stone or tile contractors should confirm their grout cure times in writing to the pool contractor to ensure that handover timing is managed appropriately.

For pool surrounds and external copings in natural stone, the Rob Parker’s Best Patio Sealer should be applied after the pool area has been allowed to dry following initial commissioning. The sealer is explicitly formulated for use on swimming pool decks (Natural Stone) and provides UV resistance, water repellence and protection against algae and efflorescence without altering the stone’s natural appearance or texture. The Rob Parker’s Best range is available directly from our stone care pages, and our team is always happy to advise on the right products for a specific stone type or pool environment.
