Entrance Steps and Terracing: Design, Construction and Safety Standards Guide
Entrance steps and terracing are among the most technically demanding elements in exterior stone landscaping. Both involve a combination of layout precision, structural consideration, drainage design and material specification that goes well beyond straightforward flat paving. When these elements are resolved well, they elevate the entire project. When they are not, they create functional and safety problems that are costly to remedy and difficult to conceal.
Stoneworld fabricates and supplies natural stone for bespoke entrance steps and terraced landscape schemes for residential, commercial and architectural projects across the UK. This guide is written for landscapers, architects, contractors and specifiers who want clear, technically grounded information on how to approach these elements correctly. It covers step design intent, safety standards, drainage, material selection and the engineering principles that apply to terracing and retaining structures.

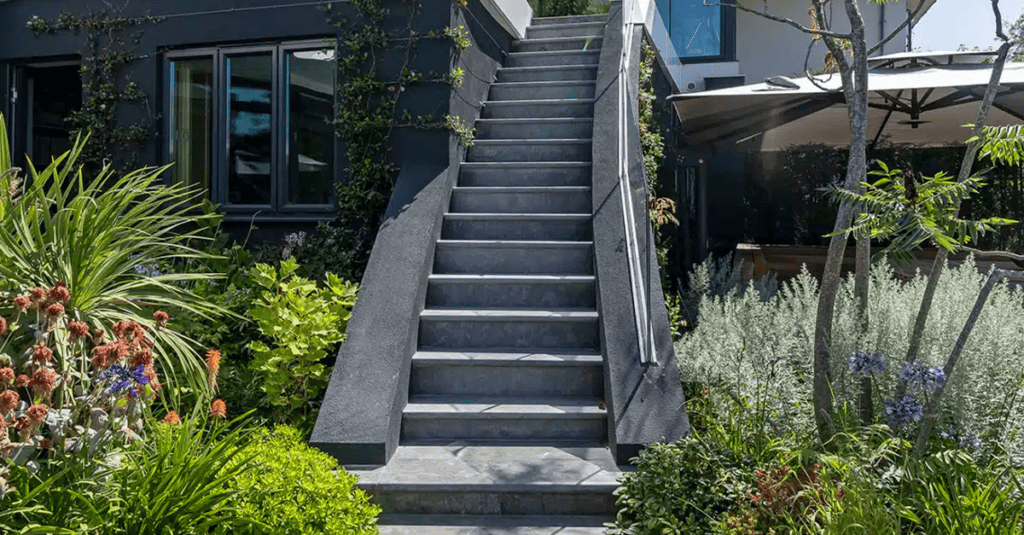

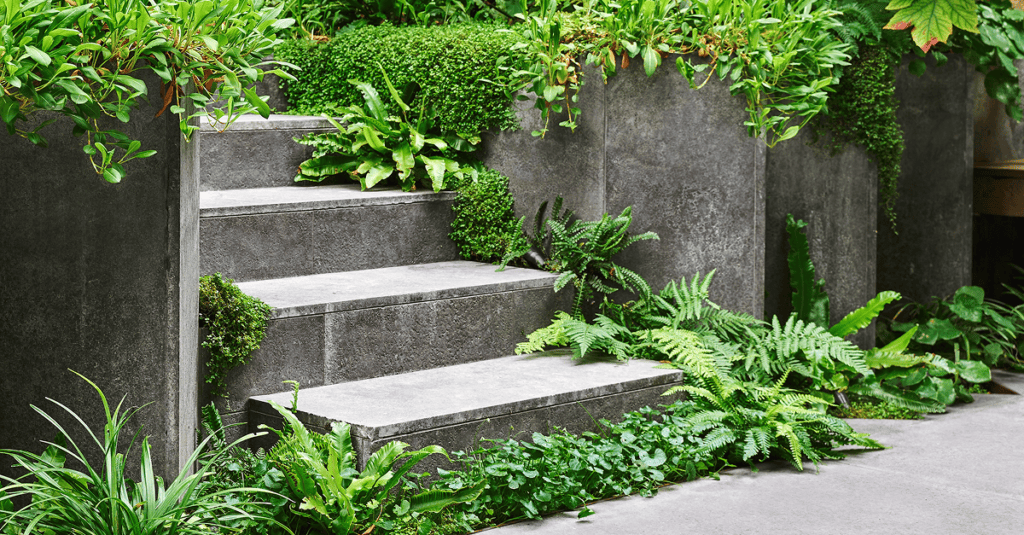

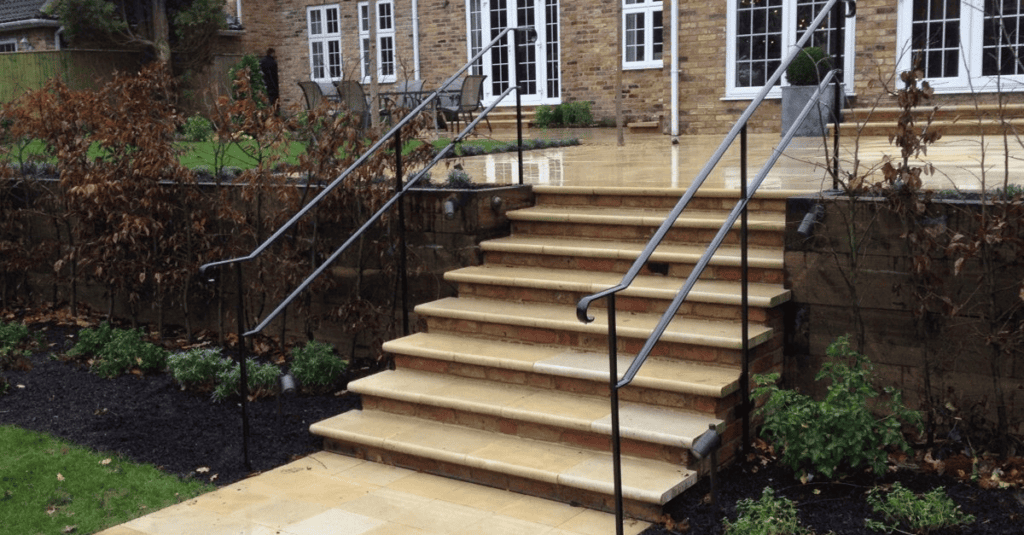

Entrance steps are among the most used and most closely observed elements in any exterior project. They mark the transition between levels and are the first stone detail that visitors encounter at close range. Their dimensions, detailing, drainage, material and slip performance all need to be resolved carefully, because failure in any one of these areas produces a step that is either dangerous, uncomfortable or visually inconsistent with the surrounding scheme.
External steps in the UK should be designed with reference to relevant guidance and standards, including those set out in BS 8300 (Design of an accessible and inclusive built environment) and the applicable Building Regulations requirements where they apply. For residential and commercial schemes, the following principles apply consistently regardless of whether full Building Regulations compliance is formally required.
The recommended rise (vertical height of each step) for external steps typically falls in the range of 100–180 mm, with the preferred range sitting between 150–170 mm for the majority of schemes. The going (horizontal depth of each tread, measured from nosing to riser face) should be no less than 280 mm and ideally 300 mm or more for comfortable and safe use. The relationship between rise and going must be consistent across all steps in a flight, variations of even a few millimetres can create a trip hazard, particularly in low-light conditions.
Where steps are to be used by a wide range of people, including older users or those with reduced mobility, the step dimensions should sit at the conservative end of these ranges, and handrail provision and landing dimensions should be addressed as part of the overall design.
The nosing of a step is the most visible and most heavily used part of the tread. It carries the weight of foot contact, defines the visual edge of the flight, and is the part of the step most exposed to weathering and mechanical wear. For natural stone steps, the nosing profile should be appropriate to the stone type, the setting and the use conditions.
A square-arrised nosing provides a sharp, clean visual line and is well suited to contemporary architectural settings where the geometry of the step is a deliberate design choice. A weathered or chamfered nosing softens the edge, distributes impact over a larger area and is generally more forgiving in heavily used settings. A bullnose profile gives the most visually rounded finish and is often used in more traditional or rural settings.
The nosing must not project so far beyond the riser that it creates a trip hazard. A maximum overhang of 25–30 mm is generally considered appropriate for most external settings. Any projection beyond this should be assessed against the specific use conditions.
External steps must be designed to shed water off the tread surface. A minimum fall of 1–2% across the tread towards the open face is generally recommended to prevent ponding. In exposed settings, or where steps are shaded for significant parts of the day, biological growth and freeze-thaw cycling are additional risks that must be managed through material selection and surface finish.
The surface finish on step treads should be appropriate for exterior use and expected foot traffic. Honed and sawn finishes offer a clean visual character but may not provide adequate slip resistance in wet conditions unless the stone type is inherently rough-textured or the finish includes anti-slip grooving. Textured finishes such as sandblasted, flamed or bush-hammered surfaces provide better wet-weather performance and are generally the more appropriate choice for exposed entrance settings. The specific finish selected should be confirmed against the likely use conditions rather than chosen for appearance alone.
Steps must be supported fully along their length and width. Cantilevering natural stone steps beyond their designed span without adequate support, or resolving support issues by varying mortar thickness across the underside, creates structural risk. Step nosings in particular should not extend beyond where the support system is capable of carrying the concentrated load that occurs at the front edge of the tread.
Where steps form part of a flight that includes matching risers, side cheeks, landing paving and wall copings, all of these elements should be specified, dimensioned and fabricated together. The visual quality of a step flight relies on the consistency of all its components, not just the tread surface. Stoneworld can supply and fabricate complete step packages, treads, risers, side cheeks, landing paving and associated copings, as a coordinated set, which maintains dimensional and material consistency across the full flight.

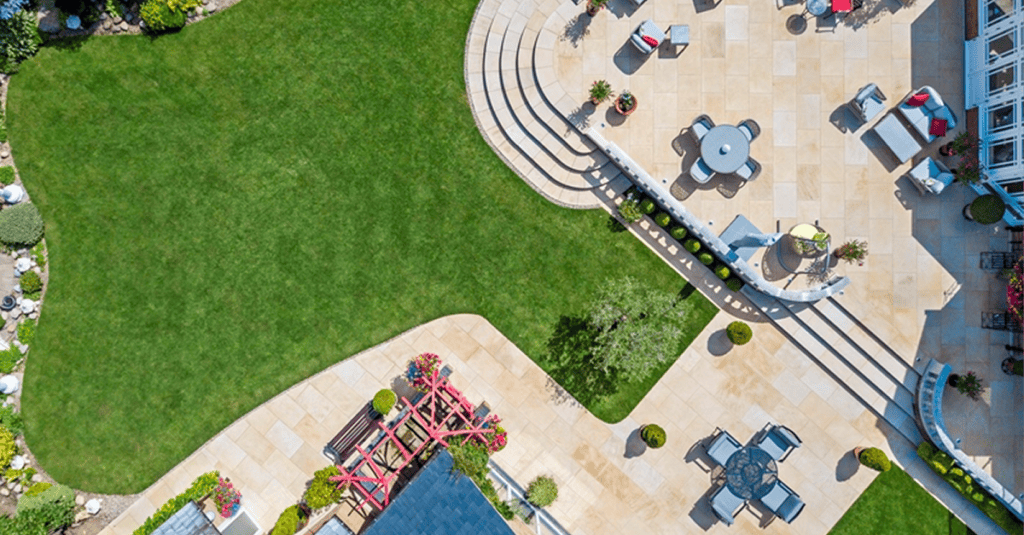

Terracing creates level areas within sloping ground, converting an unusable gradient into a series of usable outdoor spaces connected by steps, planting banks or retaining structures. On well-designed residential, commercial and garden projects, terracing resolves the practical problem of a sloping site while also creating spatial interest and a clear visual structure to the exterior scheme.
The complexity of terracing lies in managing the relationship between the retained ground, the retaining structure, the level terrace surface, the drainage arrangement and the connections between levels. Each of these elements has its own technical requirements, and they must work together as a system rather than being designed independently.
Terracing relies on some form of retaining structure to hold the cut face of ground behind each level. The nature of that structure, whether dry-stone walling, mortared stone walls, structural retaining walls, or stacked stone and earth banks, depends on the ground conditions, the height of the retained face, the proximity of buildings or boundaries, and the design intent of the project.
For retaining walls of structural significance, engineering input is required. The load that a retaining wall must carry depends on the soil type, moisture content and any surcharge loading from above. For any retaining structure above a height that carries meaningful load, the design should be confirmed by an engineer rather than assumed from standard construction practice alone.
Terracing concentrates surface water runoff in ways that a simple slope does not. Water from rainfall on the upper terrace must be directed away from the retained face and safely to a suitable outfall. If this is not managed, water can accumulate behind the retaining structure, increase soil pressure, cause structural problems and promote biological growth on stone surfaces.
Each terrace level should be designed with positive falls, clearly directed drainage, and edge or channel drainage where necessary. The drainage design should account for heavy rainfall events, not just average conditions, because it is in prolonged heavy rain that terrace drainage systems tend to fail most visibly. Drainage gullies, channels, edge restraints and the interfaces between terraced levels and any planting areas all form part of the drainage logic and should be designed as a coordinated system.
The stone used on terrace surfaces should match the finish and specification requirements of the overall exterior scheme. Where terracing is part of a project that also includes sett paving, natural stone steps, wall copings and entrance features, consistency of material and finish across all levels creates a more coherent and architecturally resolved result.
Stoneworld can supply and fabricate all of the stone elements needed for a terraced landscape scheme from one coordinated package. This includes terrace paving, step treads and risers, side cheeks, wall copings, coping pier caps and retaining wall materials, allowing the project team to maintain dimensional and material consistency across the full scheme without splitting the stone package across multiple suppliers.
